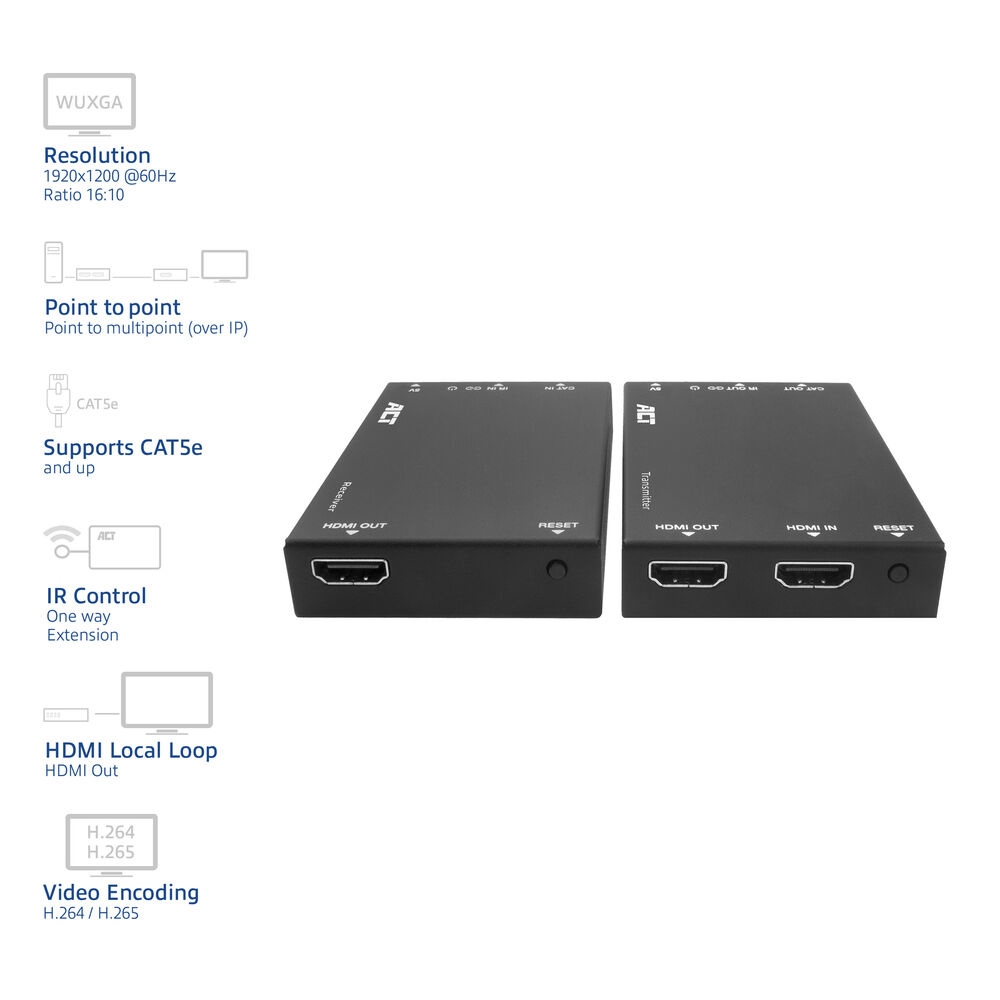

• Extend your HDMI signal via CAT5e and up over a distance up to 150 m

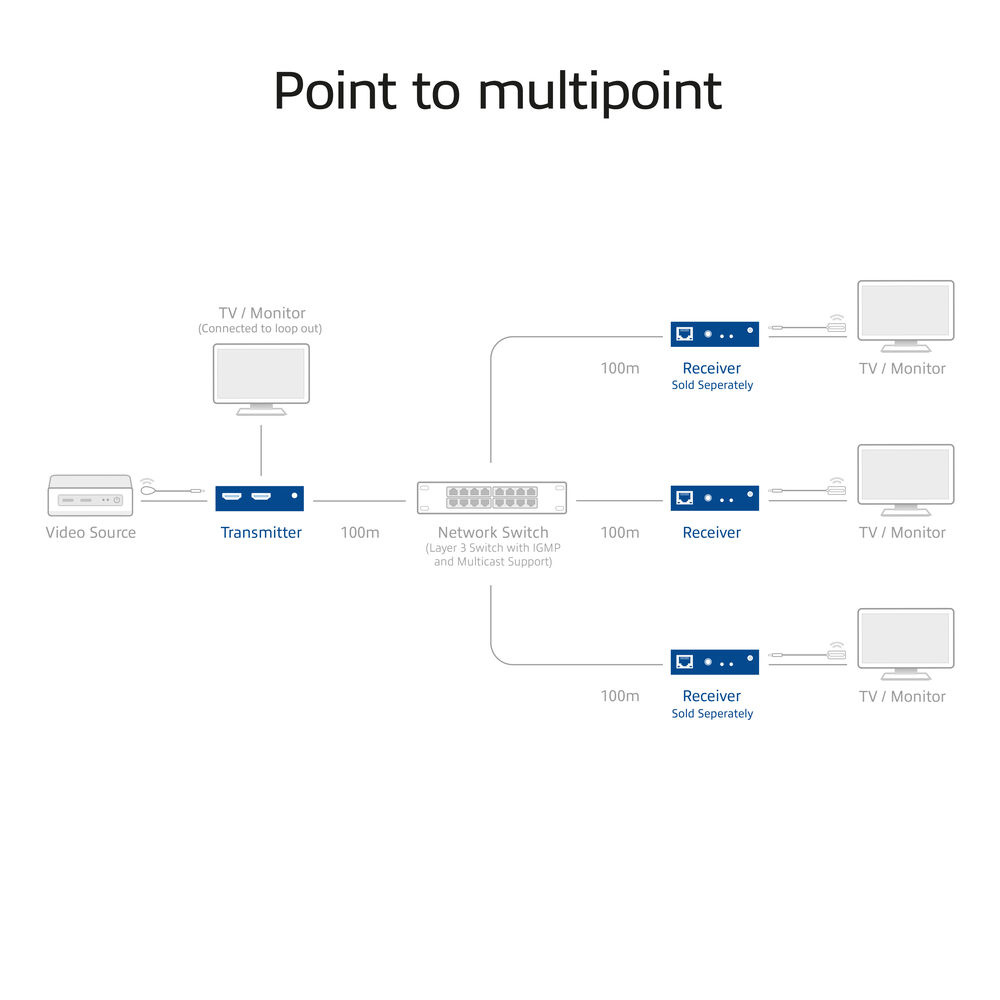

• Supports point-to-point and point-to-multipoint by using multiple receivers
• Additional HDMI output on the transmitter unit for connecting a local display (local loop out)
• Maximum resolution 1920x1200@60Hz, ratio 16:10, EDID, 4:4:4, video encoding H.265, HDCP 1.4
• IR support for remote controlling A/V devices
• Optional receiver available: AC7853
• Mounting brackets included

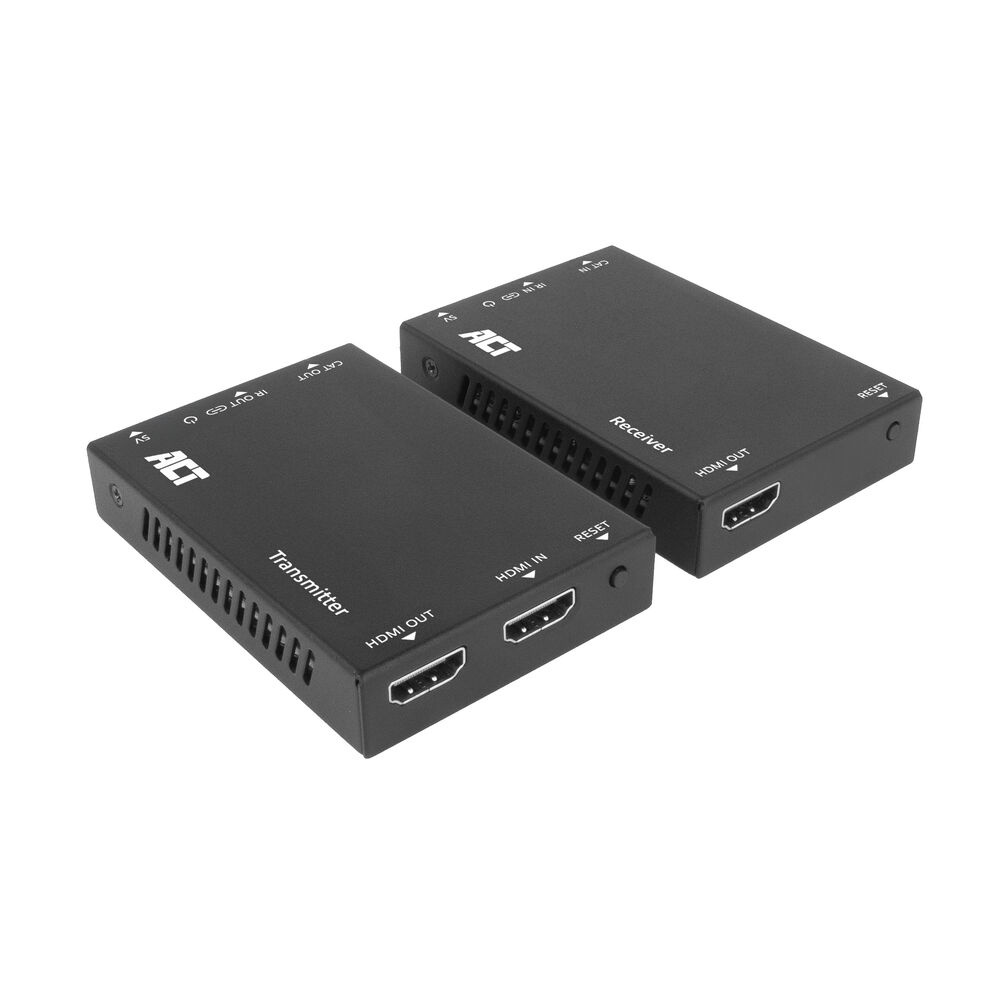

• HDMI extender set over IP with point-to-point and point-to-multipoint support

Extend an HDMI signal up to 150 meters

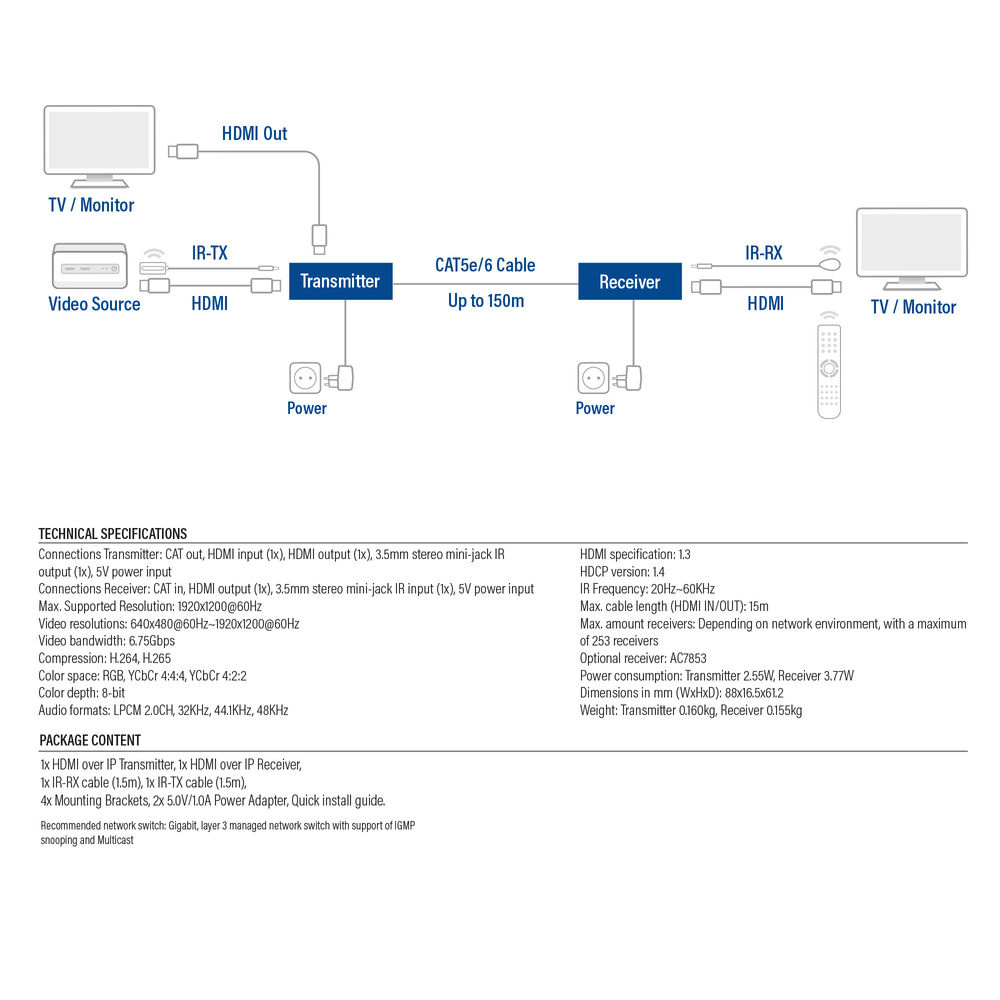

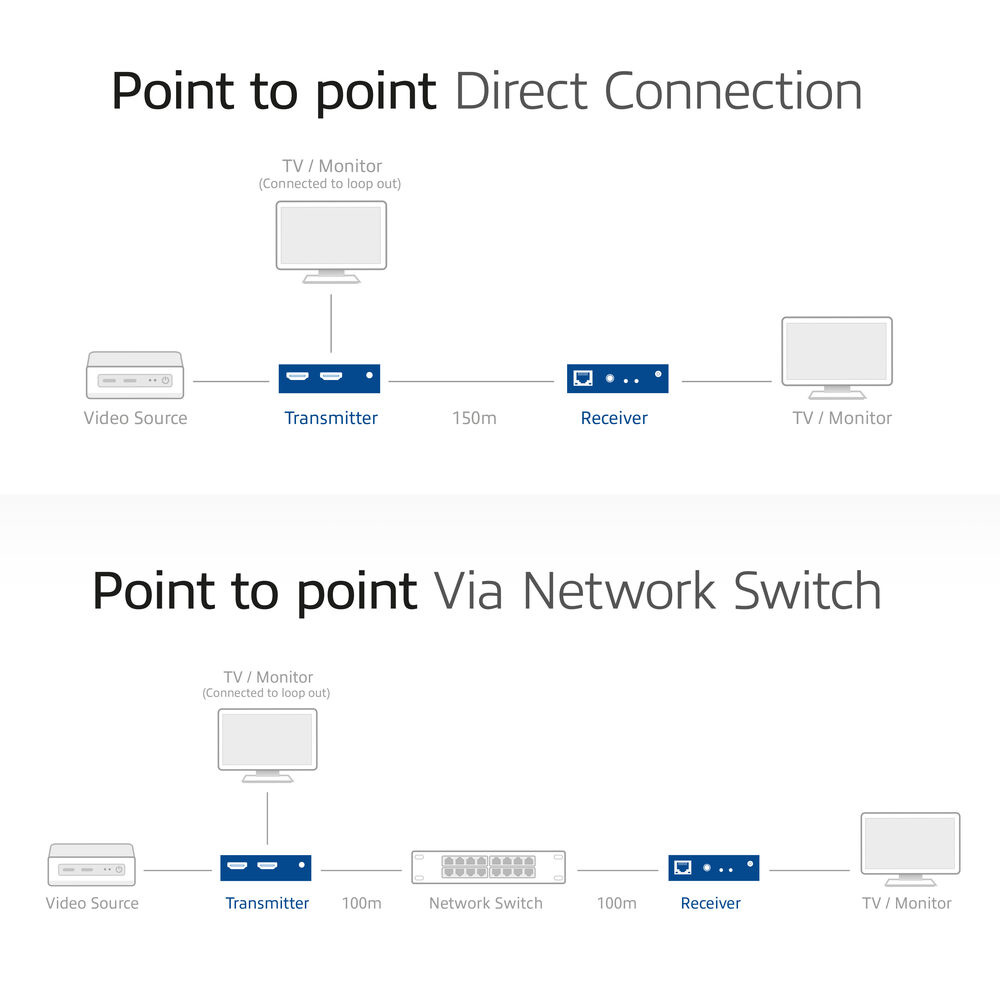

The AC7852 HDMI extender set extends an HDMI signal over a distance up to 150 meters point-to-point with a resolution of 1920x1200@60Hz via a CAT5e (and up) cable. When using a network switch in a point-to-point or point-to-multipoint situation, this switch must support Layer 3, Internet Group Management Protocol (IGMP) and Multicast.

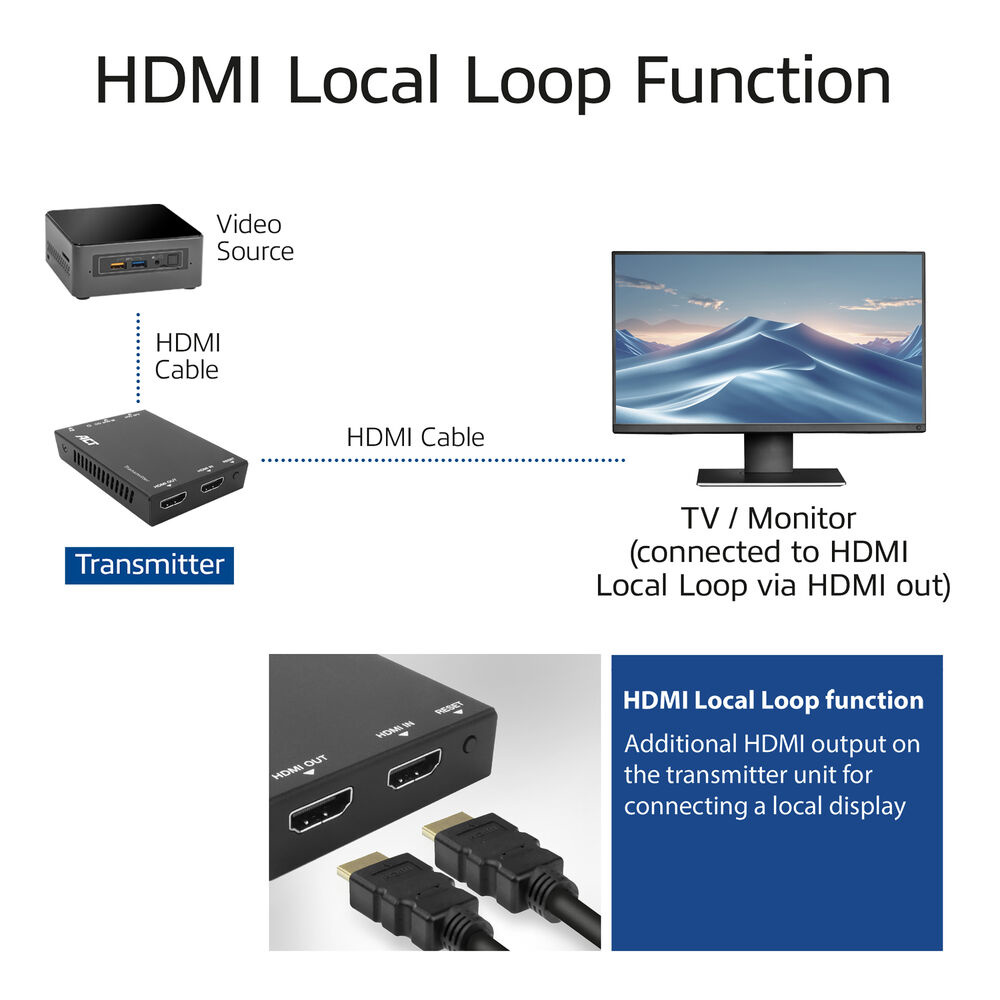

Connect a local loop display
The transmitter unit features an additional HDMI output for connecting a local TV or monitor. The source device’s content can be displayed on a nearby TV or monitor connected to the transmitter unit.

Specifications

Connections - 3.5 mm jack, HDMI, RJ45

Connections (in) - 3,5 mm jack female (x1), HDMI A (full-size) female (x1), RJ45 female (x1)

Connections (out) - 3,5 mm jack female (x1), HDMI A (full-size) female (x2), RJ45 female (x1)

Max. extension distance - 150 m

Max. extension distance (Full HD) - 150 m

Extension over - CATx

Extension connector - RJ45

Extension protocol - IP

Max. resolution @ 60Hz - 1920 x 1200

Chroma sampling - RGB, YCbCr 4:4:4, YCbCr 4:2:2

Loop-through - Yes

Video signal - HDMI

Supported features - HDCP

HDCP version - 1.4

HDMI specification - HDMI standard

Other signals - IR

Power supply - External power supply

Power supply specification - 5.0V DC 1.0A 5.0W

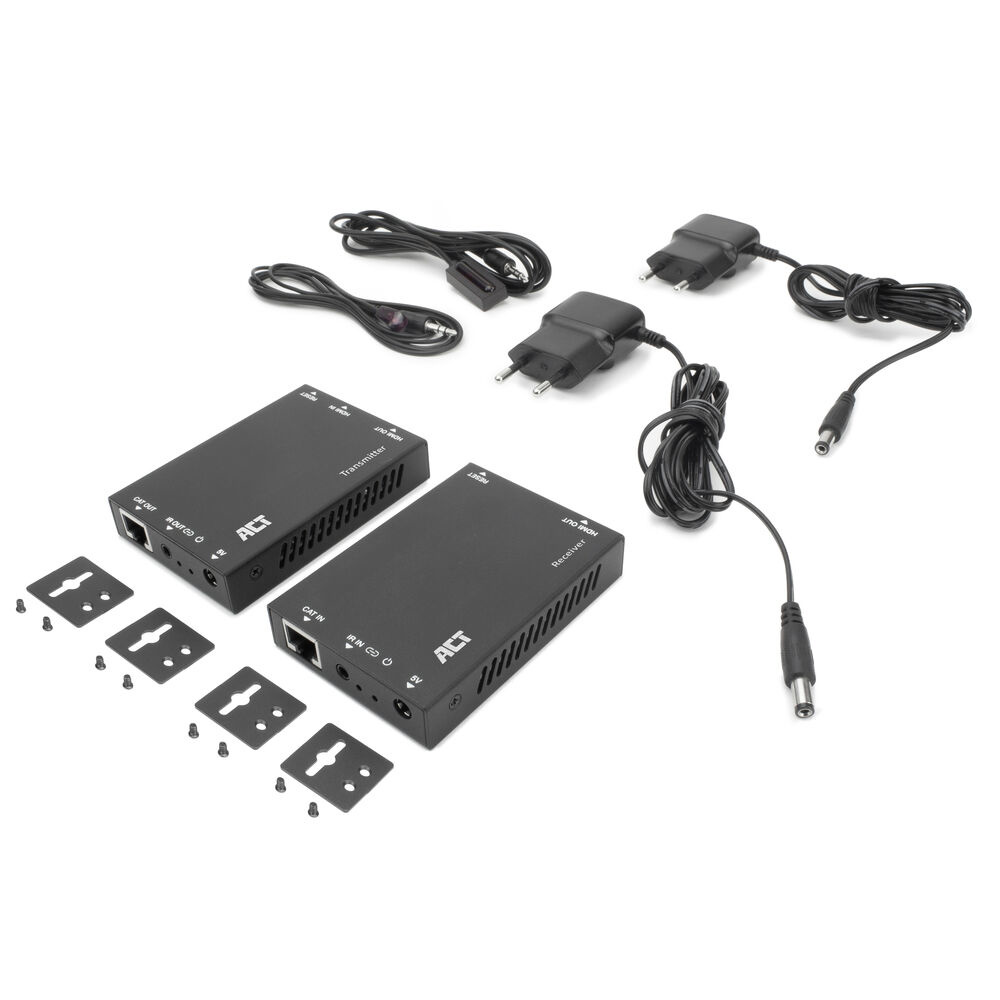

Included - 1x IR Blaster cable (1.5mtr), 1× 20~60KHz IR Receiver cable (1.5 meters) 2x 5V/1A Power Adapter, 1x QiG

Audio formats - LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz
